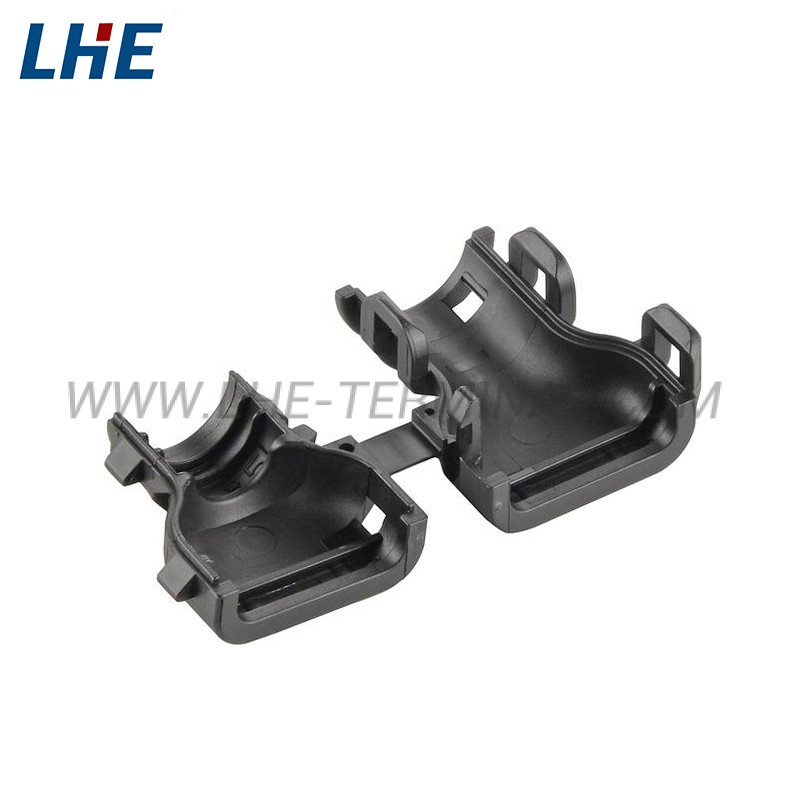

Original Part Number: 1011-344-0205
LHE Part Number: 403016
Contact Tab Size Series: Dust Cap
Color: Black
Material: PA GF
Size (MM): L:32.25 W:17.2 H:18.65
Number of Positions: 2 Position
Overview:
| LHE PN: | 403016 |
| Certification: | TUV, IATF16949, ISO14001, ISO9001, CQC, UL, ROHS |
| MOQ: | Most product not have MOQ, Small order can be accepted. |
| Sample service: | Free Samples |
| Delivery Time: | 3-5 Days |
| Quality Control | All goods will be 100% inspected before dispatched |
| Payment: | T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery. |
| Shipment: | DHL/FedEx/TNT/UPS/EMS/Aramex/SF for samples, By Air or by Sea for batch goods; Airport/ Port receiving. |
First: Consider the size of the PCB. When the size of the PCB is too large, the anti-interference ability of the system will decrease with the growth of the traces, and the cost will increase. If the size is too small, it is easy to cause problems of heat dissipation and mutual interference.
Second: Determine the position of special components (such as clock components) (the clock traces are best not to be paved around and not to walk above and below key signal lines to avoid interference).
Third: Layout the PCB as a whole according to the circuit function. In the component layout, the related components should be as close as possible, so that a better anti-interference effect can be obtained.
