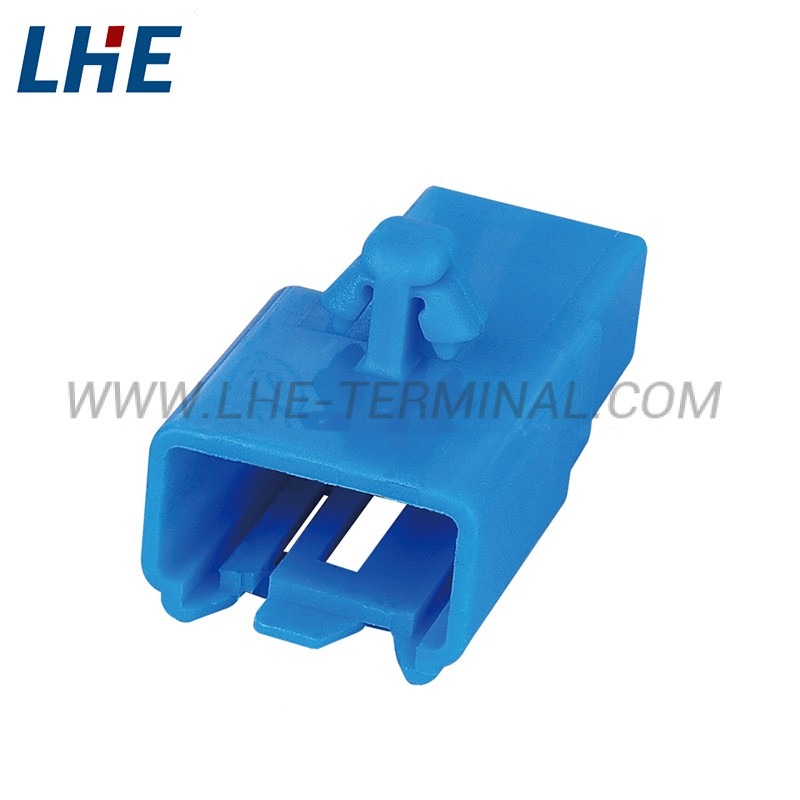

Original Part Number: 936133-4
LHE Part Number: 123002620584
Number of Positions: 26
Contact Tab Size Series: 2.3
Size (MM): L:34 W:57.4 H:16.7
Seal or Unseal: Unseal
Overview:
| LHE PN: | 123002620584 |
| Certification: | TUV, IATF16949, ISO14001, ISO9001, CQC, UL, ROHS |
| MOQ: | Most product not have MOQ, Small order can be accepted. |
| Sample service: | Free Samples |
| Delivery Time: | 3-5 Days |
| Quality Control | All goods will be 100% inspected before dispatched |
| Payment: | T/T, Western Union, MoneyGram, PayPal; 30% deposits; 70% balance before delivery. |
| Shipment: | DHL/FedEx/TNT/UPS/EMS/Aramex/SF for samples, By Air or by Sea for batch goods; Airport/ Port receiving. |
Active PFC circuit
Undoubtedly, such circuits can only be seen in power supplies equipped with active PFC circuits. Typical PFC circuit:
Active PFC circuit diagram Active PFC circuit usually uses two power MOSFET switches. These switch tubes are generally placed on the heat sink on the primary side. For ease of understanding, we marked each MOSFET switch with letters: S for Source, D for Drain, and G for Gate.
