HDSCS Connector
1564411-5 Gray HDSCS Mounting Clips E
Original Part Number: 1564411-5
LHE Part Number: 402025
Number Of Positions: 4/16/18
Contact Tab Size Series: Part
Thickness of PCB Board: 1.5MM
1564411-2 Red HDSCS Mounting Clips E
Original Part Number: 1564411-2
LHE Part Number: 402024
Number Of Positions: 4/12/15
Contact Tab Size Series: Part
Thickness of PCB Board: 2.5MM
1564411-1 Yellow HDSCS Mounting Clips E
Original Part Number: 1564411-1
LHE Part Number: 402023
Number Of Positions: 12/15/16
Contact Tab Size Series: Part
Thickness of PCB Board: 3.0MM
1564411-6 Gray HDSCS Mounting Clips E
Original Part Number: 1564411-6
LHE Part Number: 402022
Number Of Positions: 12/16/18
Contact Tab Size Series: Part
Thickness of PCB Board: 3.5MM
1564562-4 Gray HDSCS Natural Mounting Clips D
Original Part Number: 1564562-4
LHE Part Number: 402021
Number Of Positions: /
Contact Tab Size Series: Part
Thickness of PCB Board: 1.5MM
1564562-5 Gray HDSCS Mounting Clips D
Original Part Number: 1564562-5
LHE Part Number: 402020
Number Of Positions: 8/10/12
Contact Tab Size Series: Part
Thickness of PCB Board: 2.0MM
4-1418483-1 2 Ways Seal Blue Female Housing A
Original Part Number: 4-1418483-1
LHE Part Number: 228000211354
Number of Positions: 2
Contact Tab Size Series: 2.8
Size (MM): L:30.7 W:26 H:18.5
Seal or Unseal: Seal
3-1418483-1 2 Ways Seal Green Female Housing A
Original Part Number: 3-1418483-1
LHE Part Number: 228000211353
Number of Positions: 2
Contact Tab Size Series: 2.8
Size (MM): L:30.7 W:26 H:18.5
Seal or Unseal: Seal
2-1418483-1 2 Ways Seal Gray Female Housing A
Original Part Number: 2-1418483-1
LHE Part Number: 228000211352
Number of Positions: 2
Contact Tab Size Series: 2.8
Size (MM): L:30.7 W:26 H:18.5
Seal or Unseal: Seal
4-1564407-1 16 Ways Seal Blue Male Housing E
Original Part Number: 4-1564407-1
LHE Part Number: 199901611510
Number of Positions: 16
Contact Tab Size Series: Hybrid
Size (MM): L:48.1 W:62.5 H:39.8
Seal or Unseal: Seal
3-1564407-1 16 Ways Seal Green Male Housing E
Original Part Number: 3-1564407-1
LHE Part Number: 199901611508
Number of Positions: 16
Contact Tab Size Series: Hybrid
Size (MM): L:48.1 W:62.5 H:39.8
Seal or Unseal: Seal

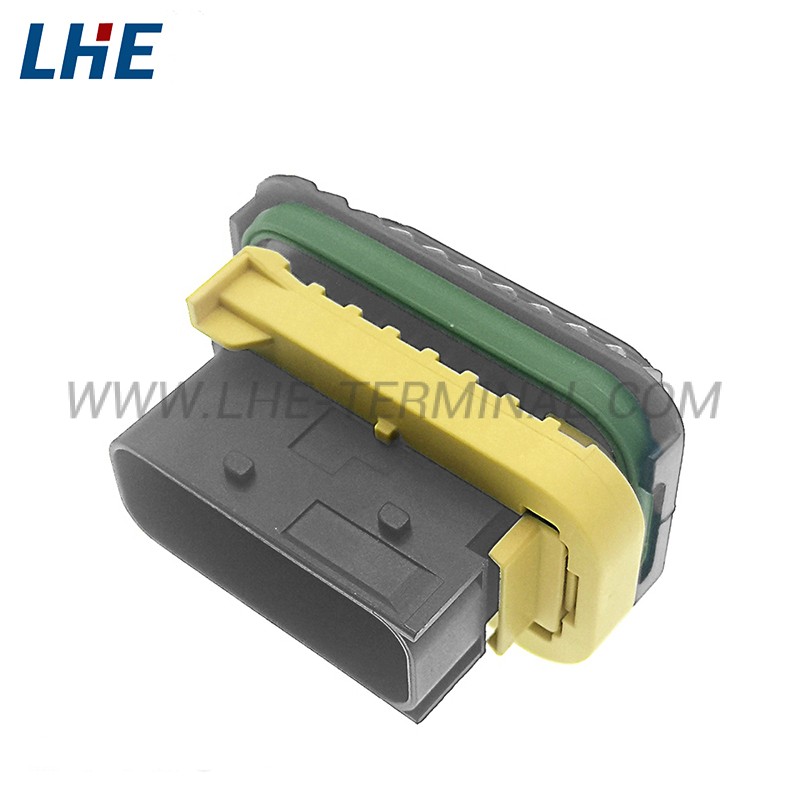

2-1564407-1 16 Ways Seal Gray Male Housing E
Original Part Number: 2-1564407-1
LHE Part Number: 199901611506
Number of Positions: 16
Contact Tab Size Series: Hybrid
Size (MM): L:48.1 W:62.5 H:39.8
Seal or Unseal: Seal
