BX Series
The BX series terminals are precision-designed automotive and industrial terminals designed for reliable crimp connections. Constructed from robust metal alloys and featuring a consistent crimp profile, the BX series terminals are compatible with a wide range of wire diameters and configurations, making them suitable for wiring harness assemblies in vehicles, machinery, and control systems.
The BX series terminal product line includes high-quality unsealed female terminals. With flexible crimp sizes and a robust construction, these terminals ensure a secure connection between wires of different diameters, while also offering manufacturing flexibility and long-term performance under heavy-duty conditions.
BX2024-2 Female Unseal Electrical Terminals
Original Part Number: BX2024-2
LHE Part Number: 6299922351
Contact Tab Size Series: BX
Size (MM): L:15.3 W:4.3 H:5.3
Wire Range(mm²): 1.0-2.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
BFA-12*3 Female Unseal Automotive Terminals
Original Part Number: BFA-12*3
LHE Part Number: 6299921325
Contact Tab Size Series: BX
Size (MM): L:28 W:5.4 H:4.1
Wire Range(mm²): 0.5-1.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal

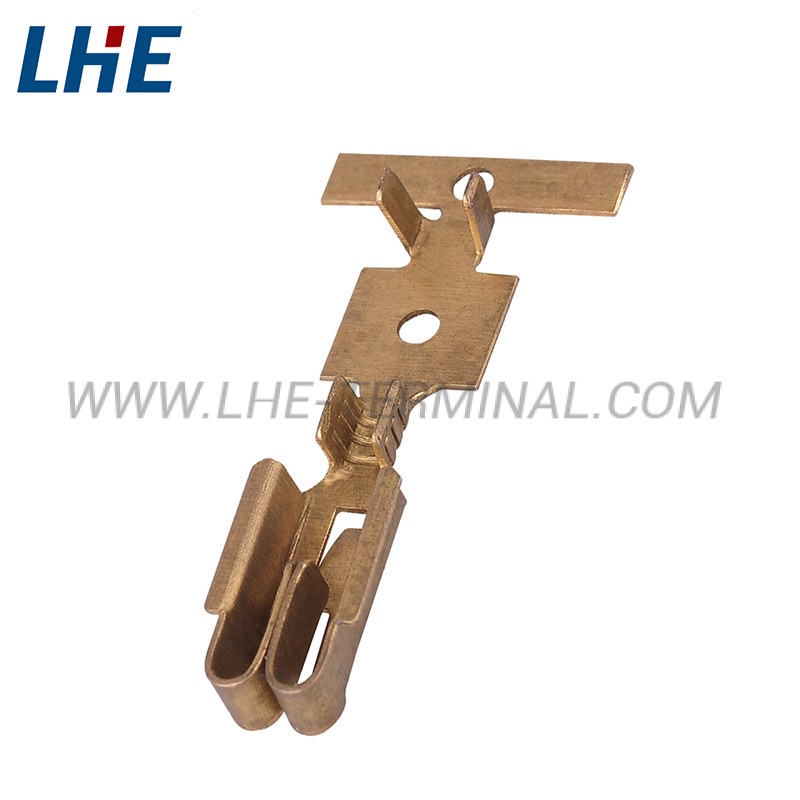

BFA-0.8A Female Unseal Automotive Terminals
Original Part Number: BFA-0.8A
LHE Part Number: 6299921324
Contact Tab Size Series: BX
Size (MM): L:30 W:5.7 H:3.8
Wire Range(mm²): 0.5-1.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
1813018-3 Female Unseal Wire Crimp Terminal
Original Part Number: 1813018-3
LHE Part Number: 6299923323
Contact Tab Size Series: BX
Size (MM): L:26 W:4.5 H:3.9
Wire Range(mm²): 1.5-2.5
Material: QSN6.5-0.1
Thickness (MM): 0.4
Seal or Unseal: Unseal
DJB621-E5*0.6*3D Female Unseal Wire Crimp Terminal
Original Part Number: DJB621-E5*0.6*3D
LHE Part Number: 6299924322
Contact Tab Size Series: BX
Size (MM): L:27.6 W:5.1 H:4.2
Wire Range(mm²): 2.5-3.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
DJB621-E5*0.6D Female Unseal Wire Crimp Terminal
Original Part Number: DJB621-E5*0.6D
LHE Part Number: 6299924321
Contact Tab Size Series: BX
Size (MM): L:19 W:4.9 H:3.7
Wire Range(mm²): 2.5-3.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
DJB621-E5*0.6B Female Unseal Cable Crimp Terminal
Original Part Number: DJB621-E5*0.6B
LHE Part Number: 6299922320
Contact Tab Size Series: BX
Size (MM): L:19 W:4.9 H:3.7
Wire Range(mm²): 1.0-2.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
BX2152-3D Female Unseal Cable Crimp Terminal
Original Part Number: BX2152-3D
LHE Part Number: 6299924319
Contact Tab Size Series: BX
Size (MM): L:19.5 W:4.8 H:6.3
Wire Range(mm²): 2.5-4.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
BX2201-B Female Unseal Power Contacts Terminal
Original Part Number: BX2201-B
LHE Part Number: 6299922318
Contact Tab Size Series: BX
Size (MM): L:28.4 W:5.3 H:3.7
Wire Range(mm²): 2.0-3.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
BX2051C Female Unseal Power Contacts Terminal
Original Part Number: BX2051C
LHE Part Number: 6299923317
Contact Tab Size Series: BX
Size (MM): L:28.3 W:5.4 H:4.2
Wire Range(mm²): 2.5-3.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal

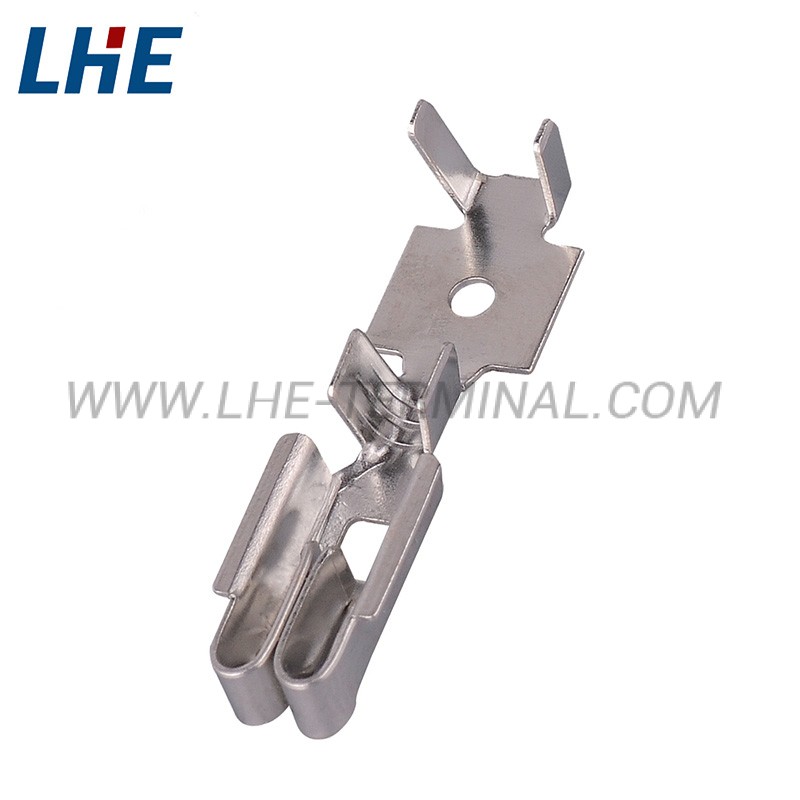

BX2051B Female Unseal Equivalent Connector Terminal
Original Part Number: BX2051B
LHE Part Number: 6299922316
Contact Tab Size Series: BX
Size (MM): L:28.3 W:5.4 H:4.2
Wire Range(mm²): 1.0-2.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
BX2141-4SND Female Unseal Equivalent Connector Terminal
Original Part Number: BX2141-4SND
LHE Part Number: 6299924315
Contact Tab Size Series: BX
Size (MM): L:28.3 W:5.7 H:3.8
Wire Range(mm²): 2.5-4.0
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
