0.64 Series
The 0.64 Series terminals feature a standard 0.64 mm contact width and are designed for precision wire-to-wire and wire-to-device connections in automotive and industrial wiring harness assemblies. Constructed from premium copper alloys, these terminals support a wide range of wire diameters and provide reliable electrical performance in both hermetically sealed and unhermetically sealed configurations.
Designed for compact and reliable electrical interconnects, the 0.64 Series terminals’ 0.64 mm contact width ensures a robust crimp connection between vehicle wiring harness systems and industrial equipment. With its robust material construction and broad compatibility, these terminals contribute to increased assembly reliability and meet demanding application requirements.
8100-3617 Unseal Male Automotive Terminals Pin
Original Part Number: 8100-3617
LHE Part Number: 6106420442
Contact Tab Size Series: 0.64
Size (MM): L:24.7 W:0.8 H:0.6
Wire Range(mm²): 1.0-2.5
Material: QSN6.5-0.1
Thickness (MM): 0.35
Seal or Unseal: Unseal
6805804KSS Female Unseal Car Battery Terminal
Original Part Number: 6805804KSS
LHE Part Number: 6206420361
Contact Tab Size Series: 0.64
Size (MM): L:15.5 W:1.5 H:2.0
Wire Range(mm²): 0.22-0.35
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Unseal

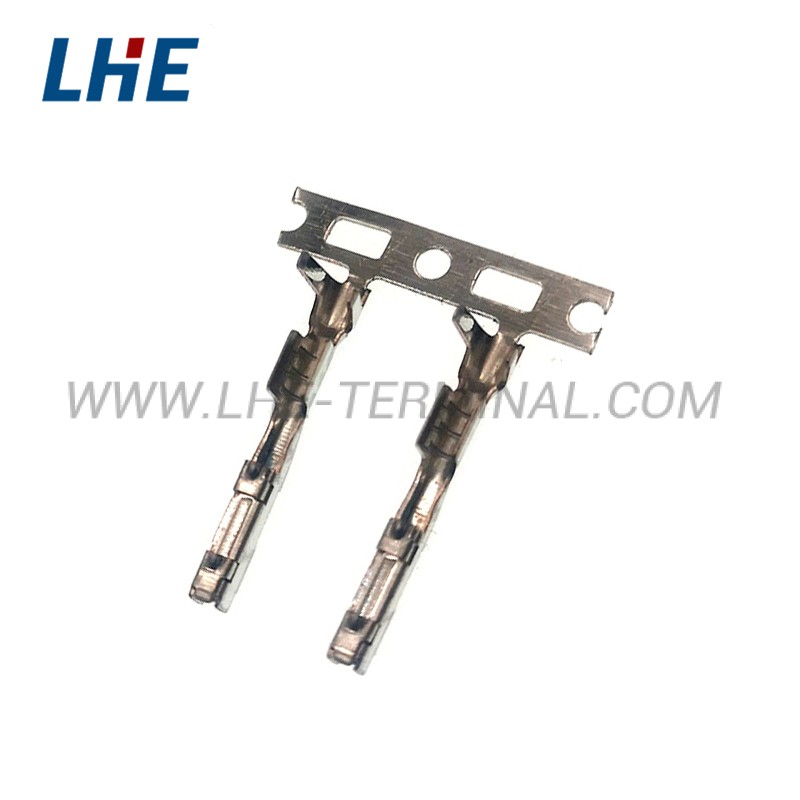

8240-0287 Female Unseal Automotive Wire Terminal
Original Part Number: 8240-0287
LHE Part Number: 6206420345
Contact Tab Size Series: 0.64
Size (MM): L:15.9 W:1.47 H:1.9
Wire Range(mm²): 0.33-0.5
Material: QSN6.5-0.1
Thickness (MM): 0.25
Seal or Unseal: Unseal
PPI0000489 Female Unseal Cable Wire Assembly Terminal
Original Part Number: PPI0000489
LHE Part Number: 6206420010
Contact Tab Size Series: 0.64
Size (MM): L:14.45 W:1.45 H:1.9
Wire Range(mm²): 0.3-0.5
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Unseal

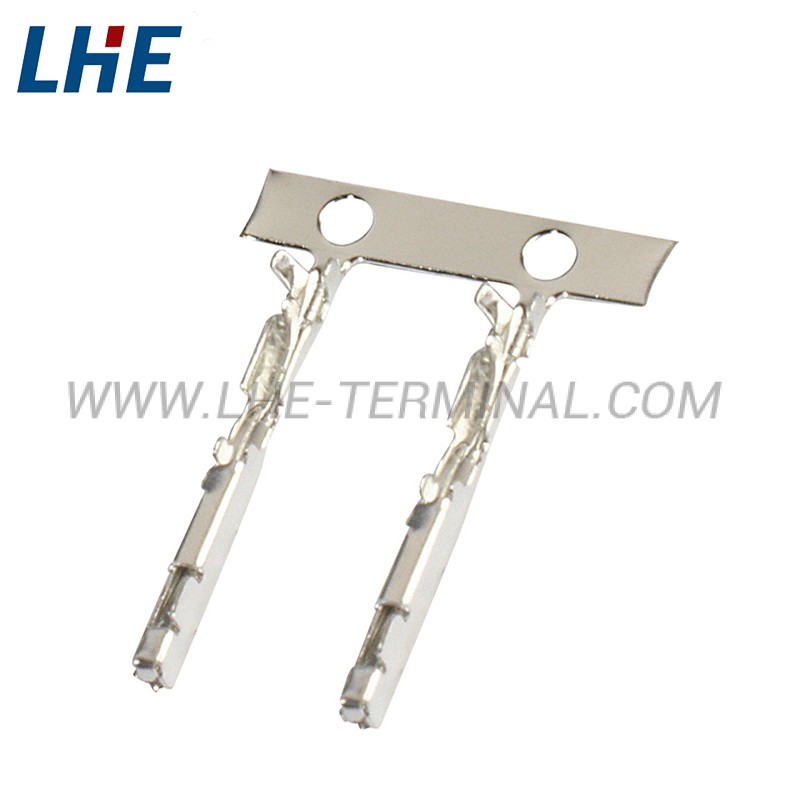

M34S75C4F1 Female Unseal Auto Splice Terminal
Original Part Number: M34S75C4F1
LHE Part Number: 6206420009
Contact Tab Size Series: 0.64
Size (MM): L:17.5 W:1.5 H:2.0
Wire Range(mm²): 0.2-0.35
Material: QSN6.5-0.1
Thickness (MM): 0.3
Seal or Unseal: Unseal
5-928918-1 Male Unseal Headlight Terminal
Original Part Number: 5-928918-1
LHE Part Number: 6106420401
Contact Tab Size Series: 0.64
Size (MM): L:22 W:0.6 H:0.6
Wire Range(mm²): 0.2-0.35
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Unseal
5-962886-1 Male Seal Terminal Power Plug
Original Part Number: 5-962886-1
LHE Part Number: 6106410402
Contact Tab Size Series: 0.64
Size (MM): L:22 W:0.6 H:0.6
Wire Range(mm²): 0.2-0.35
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Seal

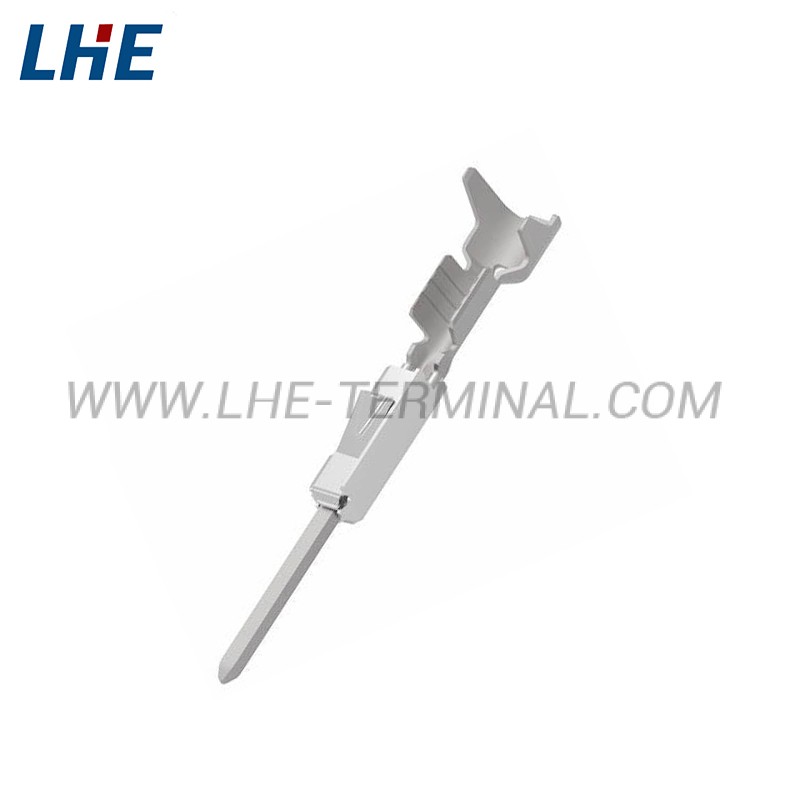

5-965908-1 Male Seal Brass Battery Terminal
Original Part Number: 5-965908-1
LHE Part Number: 6106411370
Contact Tab Size Series: 0.64
Size (MM): L:22 W:0.6 H:0.6
Wire Range(mm²): 0.5-0.75
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Seal
5-963716-1 Male Unseal Brass Battery Terminal
Original Part Number: 5-963716-1
LHE Part Number: 6106421003
Contact Tab Size Series: 0.64
Size (MM): L:22 W:0.6 H:0.6
Wire Range(mm²): 0.5-0.75
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Unseal
5-962885-1 Female Seal Electric Connector Terminal
Original Part Number: 5-962885-1
LHE Part Number: 6206410373
Contact Tab Size Series: 0.64
Size (MM): L:13.6 W:1.8 H:1.8
Wire Range(mm²): 0.2-0.35
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Seal
968221-1 Female Unseal Automobile Terminal
Original Part Number: 968221-1
LHE Part Number: 6206420004
Contact Tab Size Series: 0.64
Size (MM): L:13.8 W:1.8 H:2.2
Wire Range(mm²): 0.3-0.5
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Unseal
5-963715-1 Female Unseal Automobile Terminal
Original Part Number: 5-963715-1
LHE Part Number: 6206421002
Contact Tab Size Series: 0.64
Size (MM): L:13.6 W:1.8 H:1.8
Wire Range(mm²): 0.5-0.75
Material: QSN6.5-0.1
Thickness (MM): 0.2
Seal or Unseal: Unseal
