1.5 Series
The 1.5 Series terminals feature a standardized 1.5 mm clamping width and are designed for reliable electrical connections in automotive and industrial wiring harness systems. These precision-designed terminals support a variety of wire diameters and are available in both sealed and unsealed options to meet diverse performance and environmental requirements.
Durable and versatile, the 1.5 Series terminals utilize robust materials and consistent contact geometry for reliable crimping performance. This series is ideal for wire-to-wire and wire-to-device applications, providing reliable electrical performance in harsh automotive, sensor, and mechanical environments.
969079-3 Male Unseal Drive Connector Terminals
Original Part Number: 969079-3
LHE Part Number: 6115021446
Wire Range(mm²): 0.5-1.0
Contact Tab Size Series: 1.5
Size (MM): L:22.4 W:0.6 H:1.6
Material: QSN6.5-0.1
Thickness (MM): 0.3
Seal or Unseal: Unseal
964269-3 Male Seal Drive Connector Terminals
Original Part Number: 964269-3
LHE Part Number: 6115011445
Wire Range(mm²): 0.5-0.75
Contact Tab Size Series: 1.5
Size (MM): L:22.4 W:0.6 H:1.6
Material: QSN6.5-0.1
Thickness (MM): 0.3
Seal or Unseal: Seal
962943-3 Female Uneal Crimp Wire Terminal
Original Part Number: 962943-3
LHE Part Number: 6215021444
Contact Tab Size Series: 1.5
Size (MM): L:19.4 W:2.2 H:2.6
Wire Range(mm²): 0.5-0.75
Material: QSN6.5-0.1
Thickness (MM): 0.3
Seal or Unseal: Unseal
962876-1 Female Seal Wire to Wire Terminal
Original Part Number: 962876-3
LHE Part Number: 6215011443
Contact Tab Size Series: 1.5
Size (MM): L:19.4 W:2.2 H:2.6
Wire Range(mm²): 0.5-0.75
Material: QSN6.5-0.1
Thickness (MM): 0.3
Seal or Unseal: Seal
12059894 Male Unseal Brass Wire Terminal
Original Part Number: 12059894
LHE Part Number: 6115021355
Contact Tab Size Series: 1.5
Size (MM): L:27.4 W:1.5 H:0.8
Wire Range(mm²): 0.5-0.8
Material: H65
Thickness (MM): 0.4
Seal or Unseal: Unseal
282404-1 Male Seal OEM Wire Terminal
Original Part Number: 282404-1
LHE Part Number: 6115011342
Contact Tab Size Series: 1.5
Size (MM): L:22.5 W:1.5 H:0.8
Wire Range(mm²): 0.35-0.5
Material: H62
Thickness (MM): 0.4
Seal or Unseal: Seal
12147302 Male Unseal OEM Wire Terminal
Original Part Number: 12147302
LHE Part Number: 6215022071
Contact Tab Size Series: 1.5
Size (MM): L:20 W:3.0 H:2.2
Wire Range(mm²): 0.5-1.75
Material: QSN6.5-0.1
Thickness (MM): 0.4
Seal or Unseal: Unseal
7114-4100-02 Male Unseal Electric Pin Terminal
Original Part Number: 7114-4100-02
LHE Part Number: 6115020065
Contact Tab Size Series: 1.5
Size (MM): L:25.5 W:1.5 H:0.8
Wire Range(mm²): 0.3-0.5
Material: QSN6.5-0.1
Thickness (MM): 0.4
Seal or Unseal: Unseal

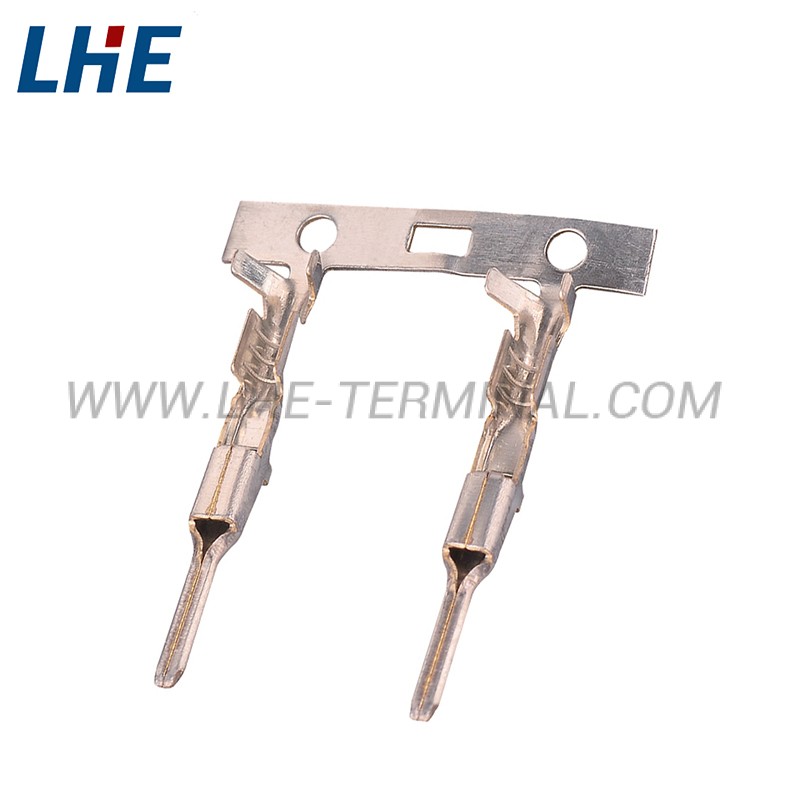

6618303BSS Male Unseal Electric Pin Terminal
Original Part Number: 6618303BSS
LHE Part Number: 6115021050
Contact Tab Size Series: 1.5
Size (MM): L:23.7 W:1.5 H:0.6
Wire Range(mm²): 0.5-1.0
Material: H62
Thickness (MM): 0.3
Seal or Unseal: Unseal
15326269U Male Unseal Pressure Wire Terminal
Original Part Number: 15326269U
LHE Part Number: 6115021047
Contact Tab Size Series: 1.5
Size (MM): L:28.4 W:1.5 H:0.6
Wire Range(mm²): 0.5-0.75
Material: QSN6.5-0.1
Thickness (MM): 0.3
Seal or Unseal: Unseal
15326269 Male Seal Pressure Wire Terminal
Original Part Number: 15326269
LHE Part Number: 6115011046
Contact Tab Size Series: 1.5
Size (MM): L:28.4 W:1.5 H:0.6
Wire Range(mm²): 0.5-0.75
Material: QSN6.5-0.1
Thickness (MM): 0.3
Seal or Unseal: Seal

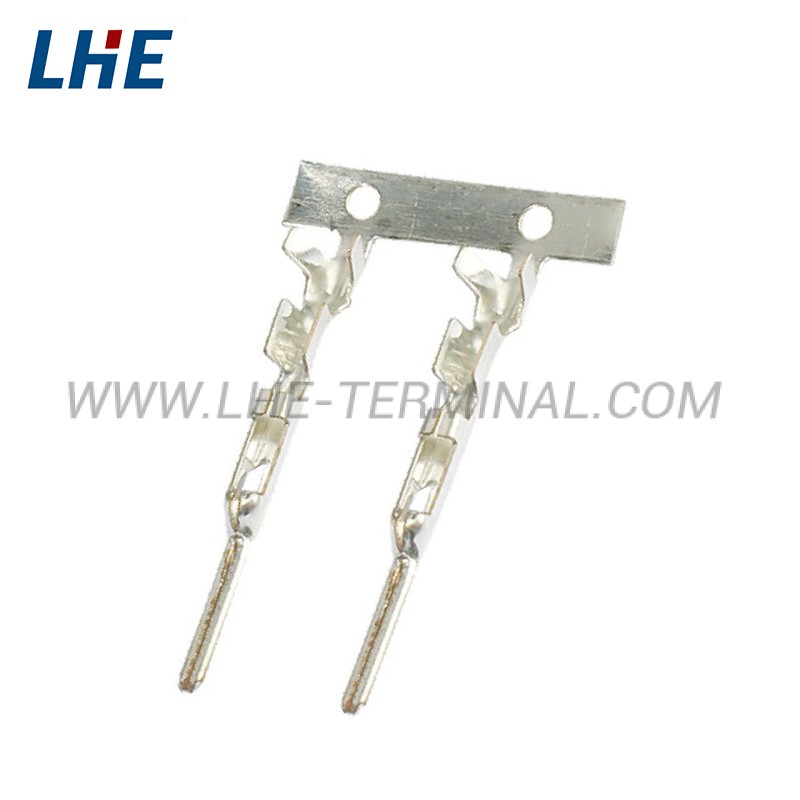

15326268 Male Seal Bulkhead Electric Terminal
Original Part Number: 15326268
LHE Part Number: 6115010045
Contact Tab Size Series: 1.5
Size (MM): L:28.4 W:1.5 H:0.6
Wire Range(mm²): 0.3-0.5
Material: QSN6.5-0.1
Thickness (MM): 0.3
Seal or Unseal: Seal
