DT Series
The DT series connectors feature robust thermoplastic housings and reliable sealing options, providing reliable performance in applications requiring extreme durability. From flange-mount male connectors to a variety of end caps, each connector supports a range of applications demanding robustness, moisture resistance, dust protection, shock resistance, and stable electrical connections.
LHE’s DT series connectors offer a range of waterproof automotive connector solutions, featuring sealed housings and shock-resistant designs, ideal for harsh environments. Available in 2 to 12-position sizes, rated currents up to 13A, and IP68 protection, this series provides safe and reliable protection for cable-to-cable and cable-to-equipment connections in vehicle electrical systems, off-road equipment, and industrial machinery.
DTP04-4P-LE07 4 Position Gray Short Cap Flange Male Housing
Original Part Number: DTP04-4P-LE07
LHE Part Number: 102500411275ASNN
Number of Positions: 4
Contact Tab Size Series: C2.5
Size (MM): L:49.05 W:53.34 H:38.1
Seal or Unseal: Seal
DTP04-4P-LE07 4 Position Gray Welded Flange Male Housing
Original Part Number: DTP04-4P-LE07
LHE Part Number: 102500411275ANNN
Number of Positions: 4
Contact Tab Size Series: C2.5
Size (MM): L:47.27 W:53.34 H:38.1
Seal or Unseal: Seal
DTP04-4P-CE03 4 Position Black E-Seal Short End Cap Male Housing
Original Part Number: DTP04-4P-CE03
LHE Part Number: 102500411275BSEN
Number of Positions: 4
Contact Tab Size Series: C2.5
Size (MM): L:49.05 W:22.2 H:19.5
Seal or Unseal: Seal
DTP04-4P-E003 4 Position Gray Short End Cap Male Housing
Original Part Number: DTP04-4P-E003
LHE Part Number: 102500411275ASNN
Number of Positions: 4
Contact Tab Size Series: C2.5
Size (MM): L:49.05 W:22.2 H:19.5
Seal or Unseal: Seal
DTP04-4P-C015 4 Position Gray E-Seal Male Housing
Original Part Number: DTP04-4P-C015
LHE Part Number: 102500411275AENN
Number of Positions: 4
Contact Tab Size Series: C2.5
Size (MM): L:47.5 W:22.2 H:19.5
Seal or Unseal: Seal
DTP04-4P-E004 4 Position Black Seal Male Housing
Original Part Number: DTP04-4P-E004
LHE Part Number: 102500411275BNNN
Number of Positions: 4
Contact Tab Size Series: C2.5
Size (MM): L:47.5 W:22.2 H:19.5
Seal or Unseal: Seal
DTP04-2P-EE01 2 Position Black Long End Cap Male Housing
Original Part Number: DTP04-2P-EE01
LHE Part Number: 102500211273BLNN
Number of Positions: 2
Contact Tab Size Series: C2.5
Size (MM): L:60.05 W:18.7 H:11.2
Seal or Unseal: Seal

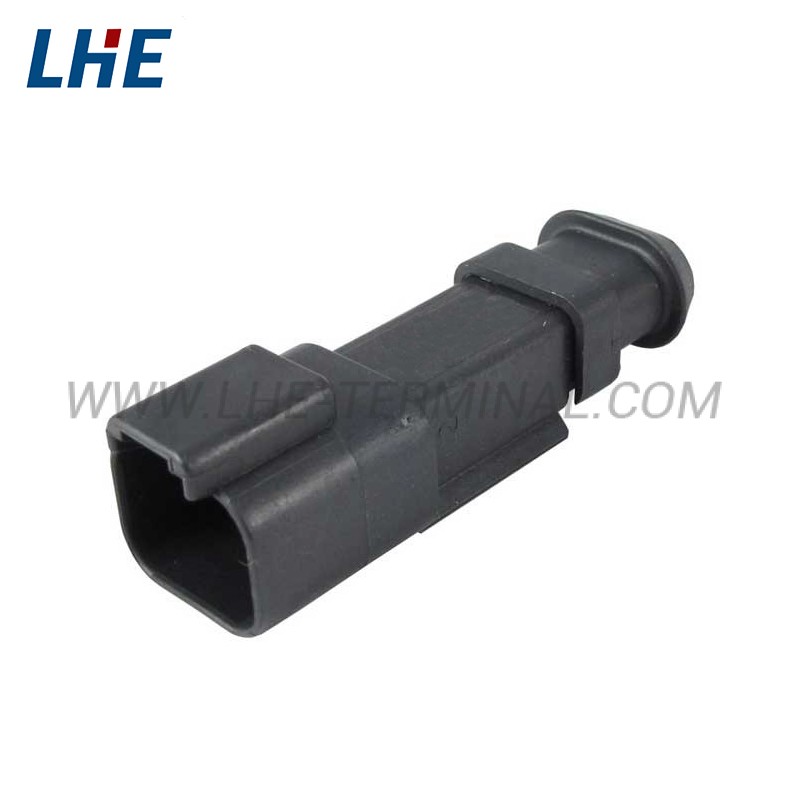

DTP04-2P-CE09 2 Position Black Long End Cap E-Seal Male Housing
Original Part Number: DTP04-2P-CE09
LHE Part Number: 102500211273BLEN
Number of Positions: 2
Contact Tab Size Series: C2.5
Size (MM): L:60.05 W:18.7 H:11.2
Seal or Unseal: Seal
DTP04-2P-CE02 2 Position Black Short End Cap E-Seal Male Housing
Original Part Number: DTP04-2P-CE02
LHE Part Number: 102500211273BSEN
Number of Positions: 2
Contact Tab Size Series: C2.5
Size (MM): L:49.05 W:18.7 H:11.2
Seal or Unseal: Seal
DTP04-2P-CE01 2 Position Gray Short End Cap E-Seal Male Housing
Original Part Number: DTP04-2P-CE01
LHE Part Number: 102500211273ASEN
Number of Positions: 2
Contact Tab Size Series: C2.5
Size (MM): L:49.05 W:18.7 H:11.2
Seal or Unseal: Seal

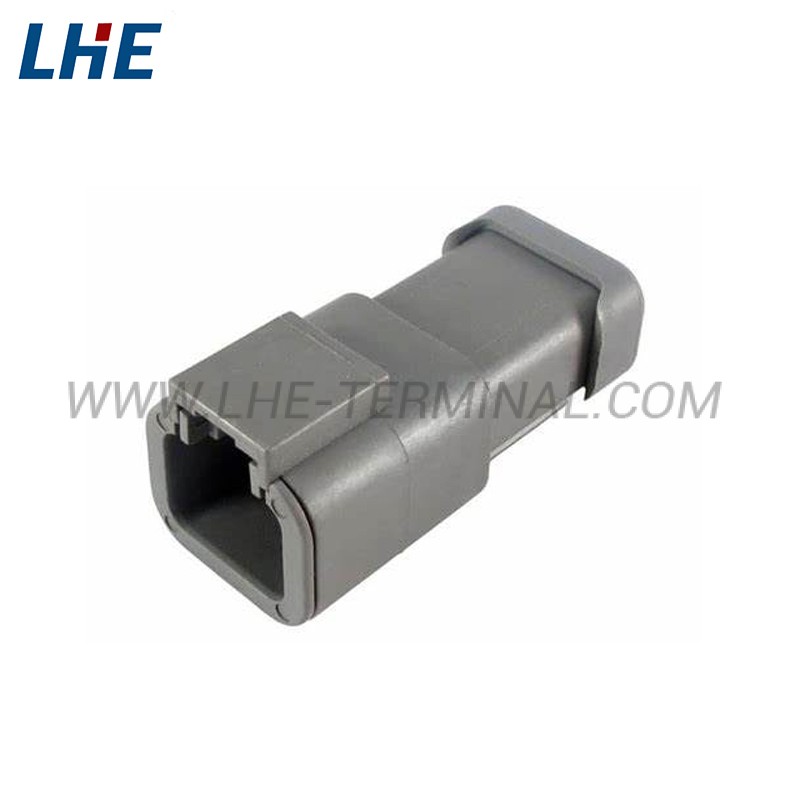

DTP04-2P-E003 2 Position Gray Short End Cap Male Housing
Original Part Number: DTP04-2P-E003
LHE Part Number: 102500211273ASNN
Number of Positions: 2
Contact Tab Size Series: C2.5
Size (MM): L:47.5 W:18.7 H:11.2
Seal or Unseal: Seal

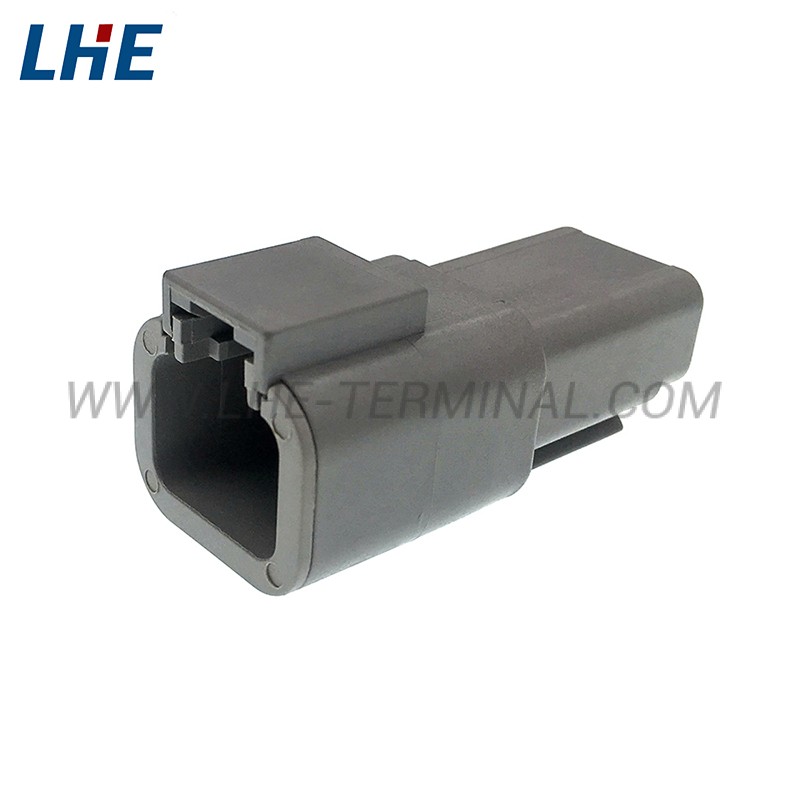

DTP04-2P-C015 2 Position Gray E-Seal Male Housing
Original Part Number: DTP04-2P-C015
LHE Part Number: 102500211273ANEN
Number of Positions: 2
Contact Tab Size Series: C2.5
Size (MM): L:47.5 W:18.7 H:11.2
Seal or Unseal: Seal
